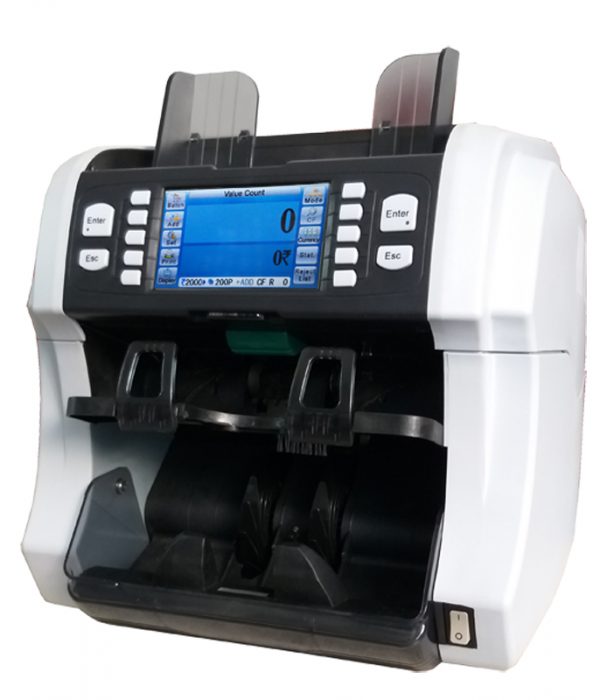

AJL206 Series
Currency Sorting Cum Authentication Machine with 1+1 Pocket
The AJL206-series, equipped with the most
advanced security technology, is Allied’s allrounder. It can be used as a classic banknote
counter, value counter, or comprehensive fitness
sorter. Equipped with a multitude of functions the
AJL206 shines in any professional environment
and will meet all of your requirements.
Currency Sorting Cum Authentication Machine with 1+1 Pocket
Non Stop counting with Reject pocket.
With two CIS detection including IR detection.
Complete Authentication.
Mixed Denomination Counting.
Full Denomination Report.
Single Denomination Sorting.
Orientation and face Sorting.
Non-issuable, Pre-2005 notes Sorting.
Value counter by an image sensor.
Improved feeding mechanism easy jam removed.
Easy clear jam and maintenance.
Modes Value-/Piece-Counting, Fitness-/Denomination-/Face- /Orientation-Sorting
PocketCapacities 500 notes (Feeder) 200 notes (Main Pocket) 100 notes (Reject Pocket)
Detection Infrared, Security Thread, UV, Magnetic Ink, Mechanical Thickness
Speed Counting: 1400 notes/min. Sorting: 1100 notes/min.
Display 4,3’’ LCD Touchscreen
Interface USB, LAN, RS-232, Serial
Power Supply 220V ± 10%, 50-60Hz
Dimensions 330mm x 310mm x 340mm (L x W x H)
Weight 14kg / 16kg
